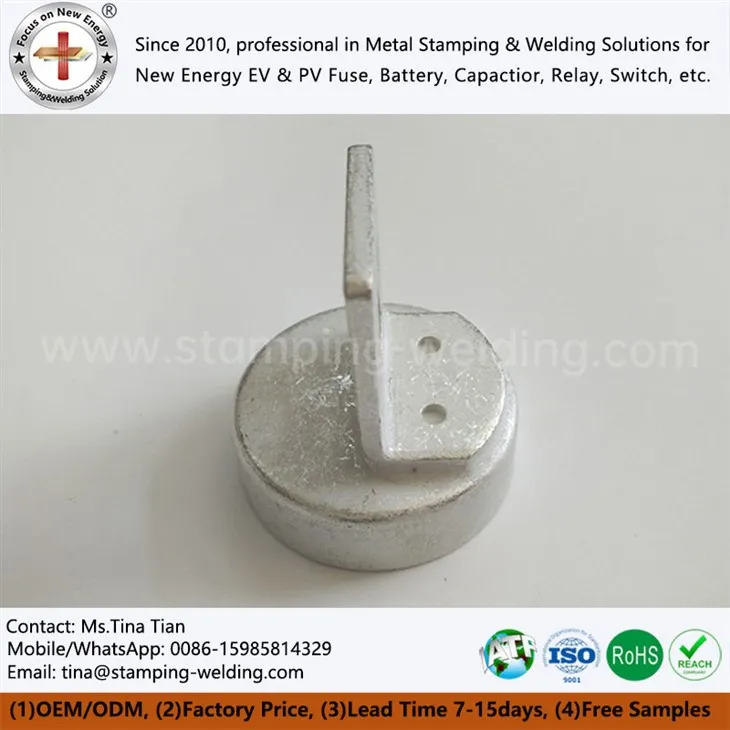

Fuse Cap And Contact Joined By Tin Brazing

1-Products Name: Fuse Cap and Contact Joined by Tin Brazing

2-Base Material:

(1)Red Copper Stamping Parts:99.99% Copper T2Y2(SECu/C1100) ,%IACS≥97,HV:80~110s;

3-Surface Treatments:

(1)Silver plating

(2)Bright tin plating

(3)Lead-free fog tin plating

(4)Nickel plating

(5)Ultrasonic cleaning

4-Free Samples:10-50pcs is allowed

5-Lead Time:Orders 7-10days,Samples 20-25days(including the tooling/die production of Copper Stamped Part);

6-Packing: Plastic inside and carton/pallet outside

7-Certifications: ISO9001,IATF16949,RoHS,REACH,etc.

8-Production Capacity: 50,000,000 pcs/month

9-Applications:PV Fuse,EV Fuse,PDU Fuse,Energy Storage Fuse,UPS DC Links,NH Fuse,BS Fuse,Fast Fuse,etc.

Welding performance of copper stamping parts Fuse End Cap and Contact

1. Strong thermal conductivity, Fuse Copper Contact Knife Cap has high thermal conductivity, and requires a high-power heat source; preheating the weldment can be used for welding End Cap and Contact.

2. The fluidity is large, and the molten copper liquid has good fluidity, and can only be welded in the flat welding position. If one-side butt welding is to be performed in a spatial position, a backing plate must be added to ensure penetration and obtain good forming.

3. The thermal expansion and cold contraction are large, and the coefficient of linear expansion of Copper End Cap and Contact Welding Components is large, and the phenomenon of thermal expansion and cold contraction during the welding process is particularly obvious, so the deformation after welding is large.

4. Oxidation, copper of Design Welded Joints is easily oxidized in liquid state to form cuprous oxide, which is dissolved in copper liquid. During crystallization, a eutectic with a lower melting point is formed, which exists on the grain boundary of copper End Cap and Terminal, which reduces the plasticity and easily causes cracks.

5. Stomata, the solubility of hydrogen in liquid copper is very large; after solidification, the solubility decreases again. During welding Outer Cap and Contact, the welding seam cools very quickly, and the excess hydrogen does not have time to escape, so hydrogen holes are formed. In addition, the cuprous oxide at high temperature reacts with hydrogen and carbon monoxide to generate water vapor and carbon dioxide. If they cannot escape completely before solidification, pores will also be formed.

Fuse Cap and Contact Joined by Tin Brazing packaged as delivered can be stored for one year from the date indicated on the packing label under the following conditions:

1）Temperature:-15 °C- +30°C (no condensation)

2）Humidity :85% RH or less

3）Not exposed to corrosive gas or sea breeze

4）No visible dust

5)Not exposed to direct sunlight

6)Load:No application of load that may cause deformation or degradation of the product.
